Working with Data files in Outlook

Outlook 2016
Outlook automatically creates Data Files as needed when you add accounts. In addition, Outlook automatically creates data files when you perform data archiving. Organizing data files allows you to access previously downloaded or synchronized email messages, calendar information, contacts, and tasks without an Internet connection.

In addition to the automatically created data files, you can add your own Data Files (.pst or PST files) to your profile. For example, you can create a separate data file to store important project documentation and use it as a project archive. For security, you can password-protect the data file, hide it in your profile, and open it as needed. You can also share the data file with others.

You can also use a data file (.pst) to back up and export Outlook items.

Notes:

  1. In Outlook for Microsoft 365:
    • POP accounts use an Outlook Data File (.pst). A PST file is stored on your computer.
    • IMAP accounts, Microsoft 365 accounts, Exchange accounts, and Outlook.com accounts use Offline Outlook Data Files (.ost). An OST file is a synchronized copy of the messages saved on a server. It can be accessed from multiple devices and applications, such as Outlook for Windows or Outlook for Mac.
  2. When messages or other Outlook items are stored in a .pst file, the items are available only on the computer where the file, or folder, is stored.

Create a new personal data file

You can create a new data file from the Outlook application or the Control Panel. To create a new personal data file in Outlook, follow the next steps:

   1.   Open the Account Settings dialog box by doing one of the following:

A. Create a new data file from the Control Panel

   A.1.   Open the Control Panel (see how to open the Control panel in Windows 10).

   A.2.   In the Control Panel dialog box, in the Search Control Panel textbox, start to type the first symbols of the word Mail to find the Mail (Microsoft Outlook) item:

Mail (Microsoft Outlook) in Control Panel Windows 10

Note: The Mail (Microsoft Outlook) icon won't appear unless you have installed Microsoft Outlook and have run the program at least once.

   A.3.   In the Mail Setup - Outlook dialog box:

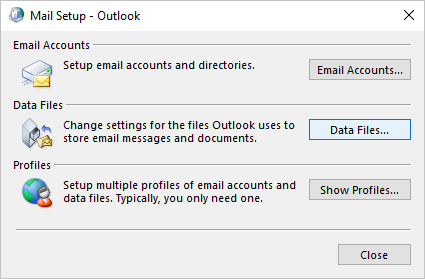

  • If you use just one profile, click the Data Files... button:
    Mail Setup - Data Files in Windows 10
  • If you use several profiles, you need to choose the correct profile:
    • Click the Show Profiles... button:
      Mail Setup - Show Profiles in Windows 10
    • In the Mail dialog box, choose the profile, then click the Properties button:
      Profile properties in Mail dialog box Windows 10

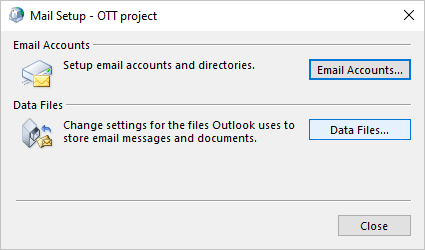

    • In the Mail Setup - *** (profile name, in this example - OTT project) dialog box, click the Data Files... button:
      Mail Setup profile Data Files in Windows 10

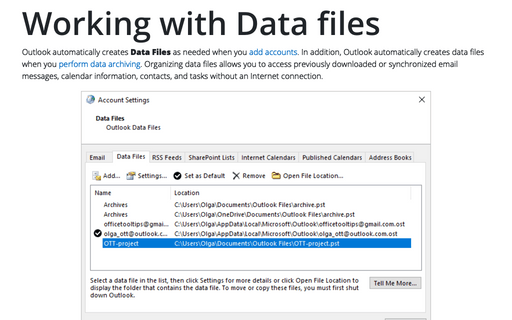

   A.4.   In the Account Settings dialog box, on the Data Files tab, click the Add... button:

Account Settings - Add data files in Windows 10

B. Create a new data file from the Outlook application - the common way

A new data file will be created for the current profile. If you use several profiles, see how to switch between them for more details.

   B.1.   Click the File tab in the Outlook application to open the Account Information pane.

   B.2.   In the Account Information pane, click the Account Settings button, then choose Account Settings...:

Account Settings in Account Information pane Outlook 365

   B.3.   In the Account Settings dialog box, on the Data Files tab, click the Add... button:

Account Settings - Add data files in Outlook 365

C. Create a new data file from the Outlook application - the simple way

A new data file will be created for the current profile in the Mail view:

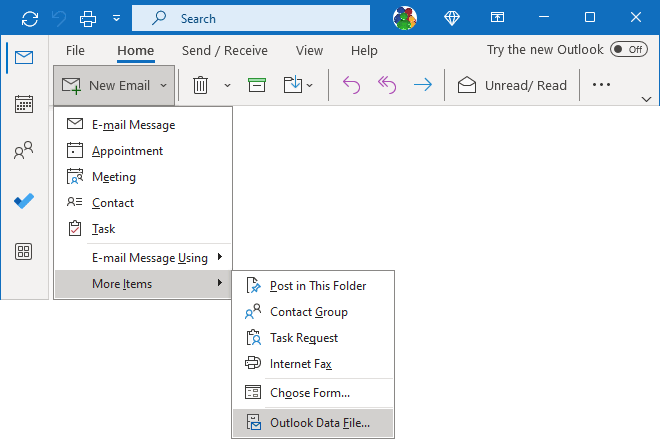

  • If you use the Simplified ribbon (see more about customizing ribbons), on the Home tab, click the New Email button, then choose Mail Items -> Outlook Data File...:
    Outlook Data File in Simplified ribbon Outlook 365

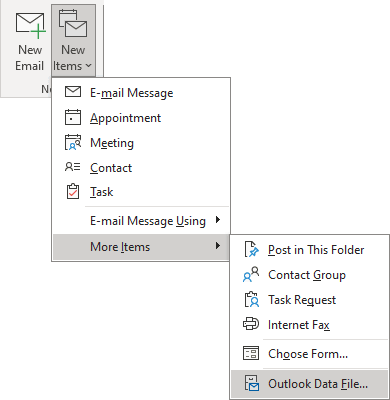

  • If you use the Classic ribbon, on the Home tab, in the New group, click the New Items button, then choose Mail Items -> Outlook Data File...:
    Outlook Data File in Classic ribbon Outlook 365

   2.   In the Create or Open Outlook Data File dialog box:

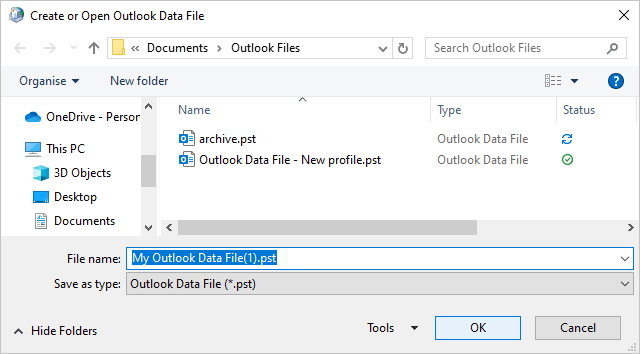

  • Choose a location and type the data file name:
    Create or Open Outlook Data File dialog box in Outlook 365
  • After selecting a location (if needed) and typing a new data file name (in this example, OTT-project), click the OK button:
    New data file in Account Settings Outlook 365

Outlook automatically adds the newly created data file at the end of the Folders list:

Folders list in Outlook 365

By default, new data files will include a Deleted Items folder and a Search Folders link, but you can add as many personal folders as you like by following the same steps as adding a regular folder to your mailbox. Personal data files behave in the same manner as regular folders. See more about how to work with folders in Outlook.

Modify a data file in Outlook

Outlook offers some modifications you can make for the data file, such as modifying the display name of the data file and changing or applying a password.

To modify a data file, do one of the following:

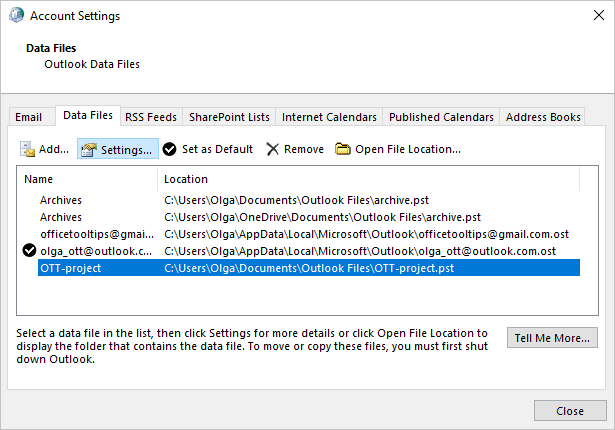

  • On the Account Setting dialog box (see how to open this dialog box), select the new data file from the data files list and click the Settings... button:
    Account Settings - data file Settings in Outlook 365

    Note: If the data file contains password protection, Outlook can ask to enter this password in the Outlook Data File Password dialog box:

    Change Password dialog box in Outlook 365
  • In Outlook:

       1.   Right-click the data file you want to modify, then select Data File Properties... in the popup menu:

    Data File Properties in the popup menu Outlook 365

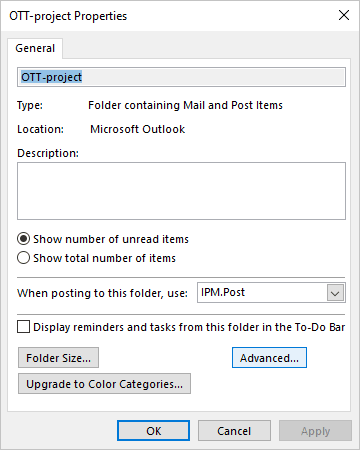

       2.   In the *** Properties dialog box, click the Advanced... button:

    Properties dialog box in Outlook 365

In the Outlook Data File dialog box:

Outlook Data File dialog box in Outlook 365

Modify the display name of the Outlook data files

  • In the Name field, specify the name for the .pst file as you want it to be displayed in the Outlook folder list
  • In the Filename field, you can see the location and the name of the data file. You can't modify this field.

Use a password for the Outlook data files

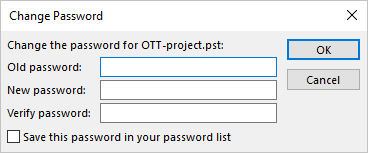

  • Click the Change Password... button to open the Change Password dialog box:
    Change Password dialog box in Outlook 365

    In the Change Password dialog box:

    • To apply a new password for the data file, leave the Old password field, then enter and confirm a password in the New password and Verify password fields accordingly.

      Select the Save this password in your password list to have Outlook cache the .pst password in your password cache.

    • To change an existing password, enter it in the Old password field, then type a new password twice in the New password and Verify password fields.

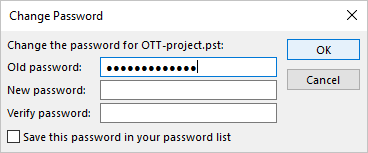

    • To remove the password for this data file, enter the used one in the Old password field, then leave empty the New password and Verify password fields:
    Change Password dialog box in Outlook 365
    • Click the OK button.

Note: Be careful! Currently, there are a large number of different tools that make passwords easy to crack.

Reduce the size of the Outlook data files

  • Click the Compact Now button to start the compact process immediately. This feature is used to compress Outlook data files.

    Therefore, it doesn't apply to new .pst files, which need no cleanup. However, you can use this option to compact a large .pst file.

Open the Outlook data file

To open a data file in Outlook for Windows, do one of the following:

  • Open the Create or Open Outlook Data File dialog box:

    A.  Using the Control Panel (see p. A for more details).

    B.  Using the common way in the Outlook application (see p. B for more details).

    C.  Using the simple way in the Mail view of Outlook (see p. C for more details).

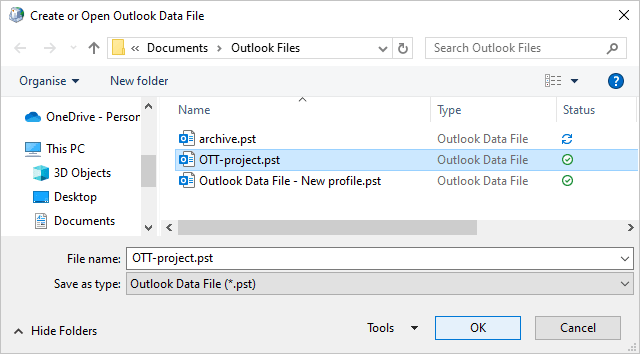

    In the Create or Open Outlook Data File dialog box, choose a location and the data file name, then double-click it, or after selecting (in this example, OTT-project.pst), click the OK button:

    Create or Open Outlook Data File in Outlook 365

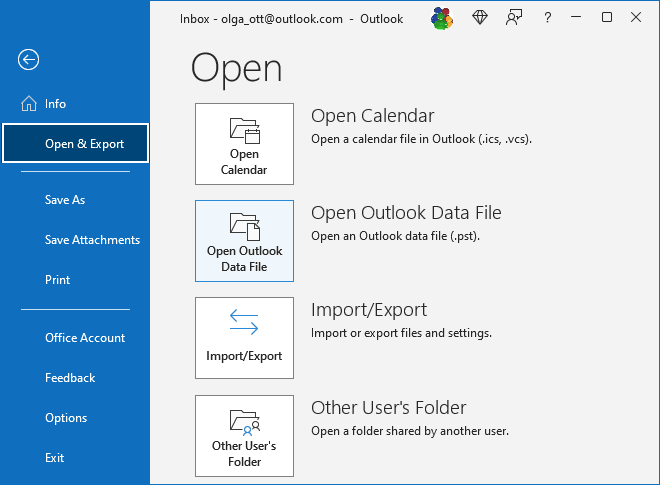

  • Open the Open Outlook Data File dialog box by clicking the File tab, opening the Open & Export pane, then clicking the Open Outlook Data File option:
    Open Outlook Data File in Outlook 365

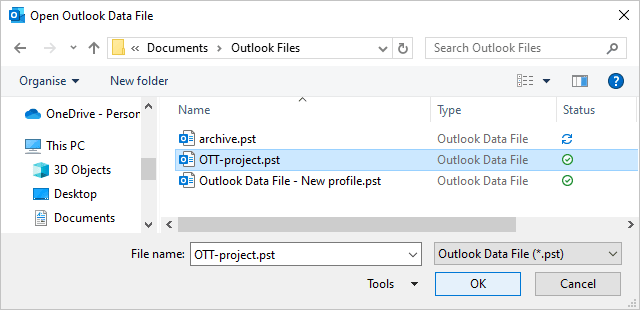

    In the Open Outlook Data File dialog box, select the data file you want to open, then click OK (or click on the file name twice):

    Open Outlook Data File dialog box in Outlook 365

If you set a password for this data file, you need to enter it each time the data file is opened in the Outlook Data File Password dialog box:

Outlook Data File Password dialog box in Outlook 365

Outlook opens the selected data file at the end of the Folders list:

Folders list in Outlook 365

Close the data file

You can keep the file open in the Outlook Folders list as long as you want. For some reason, you may want to close it when you are no longer working with certain data (the project is finished, you no longer need the archived data, etc.). Also, Outlook is a bit faster when you close unnecessary data files.

To close a data file, do one of the following:

  • A.  In the Folders pane, right-click the name of the data file you want to close, then choose Close *** in the popup menu:
    Close folder in Outlook 365
  • B.  In the Account Settings dialog box (see how to open the Account Settings dialog box from the Outlook application or the Control Panel), on the Data Files tab, select the data file you want to close from the data files list, then click the Remove... button:
Account Settings - data file Remove in Outlook 365

Outlook displays the warning message to ensure you want to remove this Outlook Data File:

Information message in Outlook 365

If you click the OK button, Outlook doesn't actually remove the data file in the file system. It just stops displaying this data file in the Folders pane. You can add it again anytime you will need it.

So, by adding the data files with password protection and closing them in your Outlook, you can hide private or unwanted data from anyone else who has access to your Outlook.

Share the data file with others

You can work with Outlook data files like with regular files. So, to share some Outlook data with others, follow these simple steps:

  • create an Outlook data file, password-protected or not,
  • move or copy the necessary information into it,
  • provide access to this data file in any convenient way, such as uploading it to a shared resource, sending it by email, etc.

The person who gains access to the shared data file must simply open it for one-time or permanent access.

See also this tip in French: Comment ajouter de fichiers de donnée.
