# Format trendlines and Moving Average

**Period = 2**for the

**Moving Average**.

Like Excel objects, you can fine-tune the trendline settings on the **Format Trendline** pane:

To open the **Format Trendline** pane, right-click on the existing trend line and choose **Format Trendline...** in the popup menu (or double-click the trend line):

## Customize a trend line fill and effects

On the **Format Trendline** pane, on the **Trendline Options** tab:

- In the

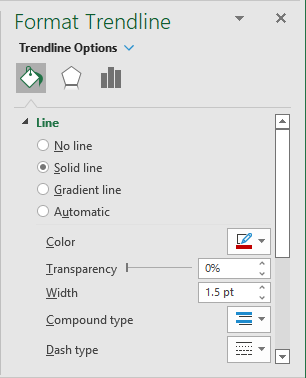

**Fill & Line**group, specify the color, transparency, width, etc. for the trendline:See more about filling options in Microsoft applications.

- In the

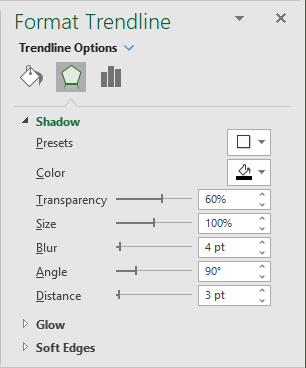

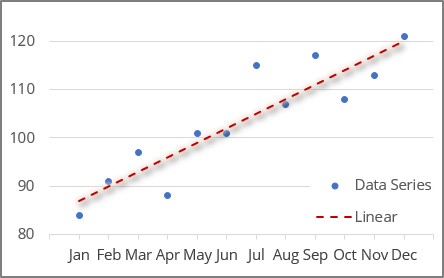

**Effects**group, specify some effects for the trend line such as**Shadow**,**Glow**, and**Soft Edges**in appropriate sections:Excel applies the chosen formatting to the trendline:

## Change the trend line type

On the **Format Trendline** pane, on the **Trendline Options** tab, in the **Trendline Options** group, under **Trendline Options**, you can change the trendline type or trendline options, such as the **Order** for the **Polynomial** trend line or the **Periods** for the **Moving Average** trend:

See more about trendline types.

## To customize a trend line legend

On the **Format Trendline** pane, on the **Trendline Options** tab, under **Trendline Name**:

- Select the
**Custom**option, - Specify a
**Trendline name**for the chart legend:

This custom trendline name will be shown in the chart instead of the automatically generated one (see examples above).

## Extend a trendline

On the **Format Trendline** pane, on the **Trendline Options** tab, under **Forecast**, change or specify the number of periods that you want to forecast:

- Type or select a value in the

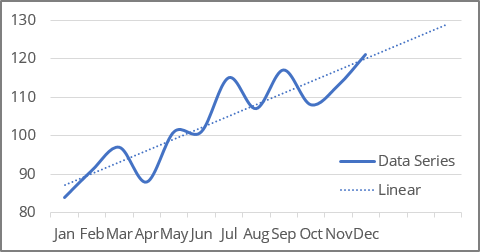

**Forward**field to project your data into the future (this option works for all trendline types): - Type or select a value in the

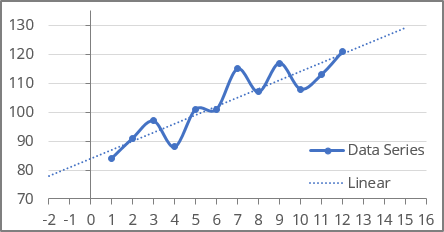

**Backward**field to project your data into the past (this option only works for XY scatter chart, Excel ignores the entered data in this field for any other chart types):

## Apply intercept

The **Intercept** is a value on the value axis where the trendline crosses the **Y** axis.

** Note**: Excel offers the

**INTERCEPT ()**function that, for given data, calculates a value on the

**Y**axis - usually the vertical (Value) axis, where the trend line should pass. See more about the

**INTERCEPT ()**function:

To set the intercept, on the **Format Trendline** pane, on the **Trendline Options** tab, under **Trendline Name**, type or select the appropriate value in the **Set Intercept** field:

** Note**: You can do this only when you use an exponential, linear, or polynomial trendline.

For example, the chart with two linear trendlines:

- The first one with calculated intercept,
- The second one with the intercept
*= 0*:

## Display the trendline equation on the chart

The **trendline equation** is a mathematical formula that describes a trendline. Excel uses the ** least squares** method to find the best fit for a line through data points - see more about the calculation of trend values.

To add an equation to the chart, on the **Format Trendline** pane, on the **Trendline Options** tab, at the bottom of the **Trendline Options** group, select the **Display Equation on chart** checkbox:

** Note**: You can display trendline equations for all trendline types except for the

**Moving Average**:

See how to format the chart equation below.

## Display the R-squared value on a chart

The **R-squared value** (in Excel, **R ^{2}**) is used to analyze how well the trendline corresponds to the data series. The R-squared value is a number from

**to**

*0***. The closer**

*1***R**is to

^{2}**, the closer the trendline is to the data points. An exactly matching model has**

*1***R**equal to

^{2}**.**

*1*To add the R-squared value to the chart, on the **Format Trendline** pane, on the **Trendline Options** tab, at the bottom of the **Trendline Options** group, select the **Display R-squared value on chart** checkbox:

** Note**: You can display an

**R-squared value**for all the trendline types except for the

**Moving Average**:

## Format chart equation and R-squared value

Excel adds the **equation** and **R-squared value** with parameters by default. You can easily customize them:

- To change the position of the
**equation**and**R-squared value**on the chart, click on the corresponding text and drag the textbox using the mouse. - Format the textbox of the
**equation**and**R-squared value**as a regular text box:- Change the text color, size, add effects, etc.
- Change the filling options, add effects, border color, weight, type, etc.

- To display more or less decimal places on the
**equation**or**R-squared value**when displaying on a chart, do the following:- Double-click the text box to open the
**Format Trendline Label**pane. - On the

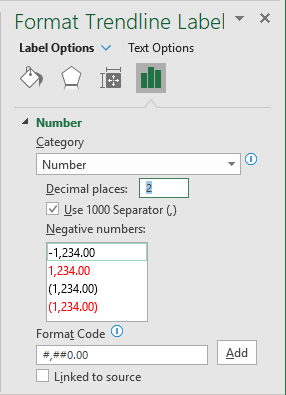

**Format Trendline Label**pane, on the**Label Options**tab, in the**Label Options**group, in the**Number**section:- From the
**Category**list, select**Number**, - In the
**Decimal places**field, type the number of decimal places you want to see on the coefficients in the**equation**and**R-squared value**: - Press
**Enter**to update the text box.

- From the

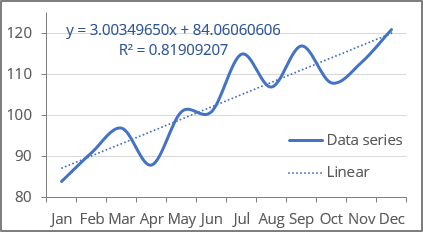

For example, with

decimal points:*8* - Double-click the text box to open the
