How to create irregular polygon charts in Excel

Excel 365
Many organizations utilize 360-degree feedback (also known as multi-rater feedback, multi-source feedback, multi-source assessment, or 360-degree review) to assist employees in work and social skills development. This process includes gathering employee's subordinates, colleagues, supervisor(s), and manager(s) feedback; and comparing self-evaluation and individual group metrics.

The irregular polygons chart helps to display 360-degree feedback in an easy to interpret form:

The irregular polygon charts in Excel 2016

The irregular polygons show which traits the employee overestimates and which underestimates. Also, it is very significant when the self-estimation of the employee for different indicators is substantially different from the ratings of other participants in the assessment.

Irregular polygons belong to the family known as radar charts, spider charts, web charts, star plots, polar charts, cobweb charts, or Kiviat diagrams.

To create a chart of irregular polygons in Excel, do the following:

   1.   Select the chart data.

For example:

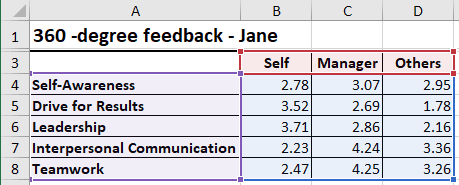

The data for irregular polygons chart in Excel 2016

   2.   On the Insert tab, in the Charts group, click the Insert Waterfall, Funnel, Stock, Surface or Radar Chart dropdown list:

The Insert Waterfall, Funnel, Stock, Surface or Radar Chart button in Excel 2016

Select the Radar, Radar with Markers, or Filled Radar:

Radar, Radar with Markers or Filled Radar charts in Excel 2016

Excel creates the chart from your data:

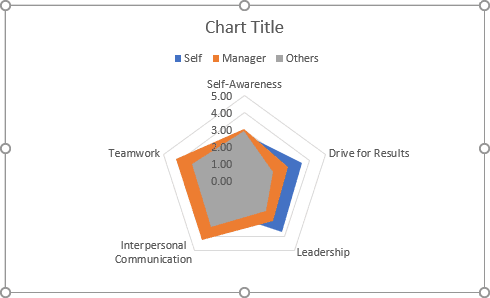

The simple irregular polygons chart in Excel 2016

   3.   Select the title and change it or remove it.

   4.   Select the axis and remove it.

   5.   Right-click on any of the data point and choose Add Data Labels -> Add Data Labels in the popup menu:

Add Data Label in Excel 2016

Add any other adjustments you find useful for illustration purposes.
