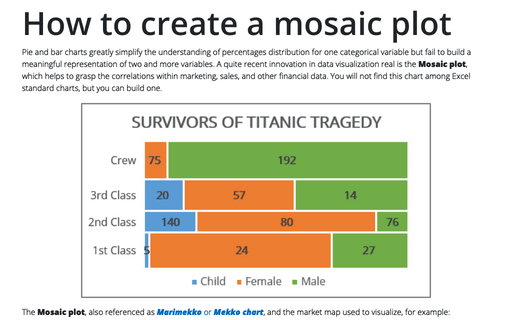

# How to create a Mosaic plot in Excel

**Mosaic plot**, which helps to grasp the correlations within marketing, sales, and other financial data. You will not find this chart among Excel standard charts, but you can build one.

The **Mosaic plot**, also referenced as ** Marimekko** or

*, and the market map used to visualize, for example:*

**Mekko chart**- The percentage of the data for the primary and secondary categories. Such as the ratio of men and women for the crew and each class of passengers:
- Changes in the structure for a closed field, such as a market share of mobile apps (see How to create a Marimekko or Mekko chart in Excel):

The **Mosaic chart** is a two-dimensional mixture of both a **100% stacked column** and a **100% stacked bar** chart in Excel. The crucial feature is the variable column width and height that corresponds to the fraction along vertical and horizontal dimensions.

To create a mosaic plot in Excel, you need to follow the below steps (not so easy to guess though):

** 1. ** Re-shape the data into simple data series.

** 2. ** Create a step area chart (see How to create a step Area chart for the Mosaic plot in Excel).

** 3. ** Add labels to the chart (see How to add labels to the mosaic plot).

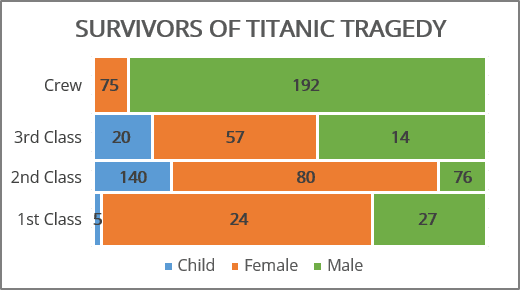

For example, for the **Casualties and survivors of the Titanic tragedy**:

To build a mosaic plot in Excel, you need to ** re-shape** the data into simple data series. The

**Area chart**creates a mosaic effect by varying sub-areas width and heights.

To create an area chart, first, create a table containing widths in the first column of each row and the heights in the following item columns:

** 1. ** Calculate the height for each row of the chart:

The height for the first row of items is:

* = C9 / SUM (C9:F9), = 202 / (202 + 118 + 178 + 212) = 28.45%*,

The height of all the following rows are:

* = D9 / SUM (C9:F9), = 118 / (202 + 118 + 178 + 212) = 16.62%*,

* = E9 / SUM (C9:F9), = 178 / (202 + 118 + 178 + 212) = 25.07%*,

* = F9 / SUM (C9:F9), = 212 / (202 + 118 + 178 + 212) = 29.86%*.

** 2. ** Calculate the **X values** for the first row of the chart, starting from ** 0**:

* = C7 / C9 * 100 = 2* - the percent of survived children of all survived in the 1

^{st}class,

* = (C7 + C5) / C9 * 100 = 72* - the percent of survived children and women of all survived in the 1

^{st}class,

* = 100* as 100% of survived in the 1

^{st}class:

** 3. ** Calculate the **X values** for the second row in the chart:

* = D7 / D9 * 100 = 20* - percent of survived children of all survived in the 2

^{nd}class,

* = (D7 + D5) / D9 * 100 = 88* - percent of survived children and women of all survived in the 2

^{nd}class.

** 4. ** Calculate the **X values** for the third row in the chart:

* = E7 / E9 * 100 = 15* - percent of survived children of all survived in the 3

^{rd}class,

* = (E7 + E5) / E9 * 100 = 58* - percent of survived children and women of all survived in the 3

^{rd}class.

** 5. ** Calculate the **X values** for the last row in the chart:

* = F5 / F9 * 100 = 9* - percent of survived women of survived crew members.

So, for this example, the **X values** are: *0*, *2*, *72*, *100* and *20*, *88* and *15*, *88* and *9*.

** 6. ** Insert the **X values** in sorted order into the table and add up the appropriate heights:

** 7. ** To create a step chart, you will need two copies of the same values:

- the start value (previous value)
- the end value (current value).

For this example:

The data for the step Area chart is prepared. For the following step, see How to create a step Area chart for the Mosaic plot in Excel.
